Vortex Flow Control

All of our industry leading Vortex Flow Control solutions aid in throttling the flow rate of stormwater before it being discharged into your local storm drain or water course. They are custom fabricated to cater to the specific needs of each customer.

HYDRO-VALVE

The Hydro-Valve is a vortex flow control device for throttling the flow rate of stormwater before discharge into a local storm drain or water course.

It is available in a range of sizes with varying flow rates to suit all specifications. It is used to control the flow of stormwater from the attenuation tank preventing downstream flooding during periods of heavy rainfall. Manufactured to customer specifications in order to achieve a specified flow rate at a given head height. This self-activating device uses vortex principles to control and attenuate stormwater flow without the need for moving parts or the need for an external power source.

JFC vortex flow controls are available with a curved back option eliminating the need for the contractor to install vertical benching. The bypass facility is located beyond the controlling orifice of the vortex chamber so should anything block the inlet to the vortex chamber or get inside, operating our bypass will allow the upstream system to be drained down while also possibly saving the need to over-pump.  Due to the location of the Bypass Door, this can also remove the need for a seperate penstock or disk valve.

JFC Hydro-Valve (Vortex Flow Control) is available in a range of sizes with varying flow rates (1 – 50 L/s*) to suit many specifications. *Contact JFC for larger flow rates.

Design:

JFC Hydro-Valves are manufactured to customer specifications and are custom designed to achieve a specified flow rate at a given head height.  It fits into one of the following manhole types depending on the specification

Curved Back (mm) Flat Back** (mm)
1200 1050
1350 1800
1500 2100
2400

*Contact JFC for further information

**Requires concrete shuttered wall on the inside of the manhole chamber

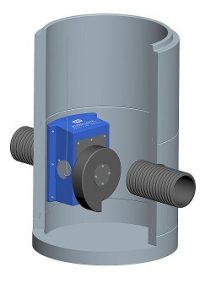

JFC Hydro Valve

Application:

It is used to control the flow of Stormwater from the attenuation tank preventing downstream flooding during periods of heavy rainfall.

Features & Benefits:

  • Typical Flow rate 1-50L/s*
  • Typical head heights: 450-3000mm*
  • WRc Certification
  • Customised Specification
  • No Moving Parts
  • Self-Activating
  • Self-Cleansing
  • Manual By Pass
  • Easy Installation
  • 3-6 Times Greater Orifice CSA
  • Hydraulic Data Available
JFC Hydro Valve

Installation:

This unique patented design allows for quick and easy installation to various types of manholes (see above).  The Hydro-Valve is fixed with steel stud anchors to the inside wall of the manhole.  A manual by-pass is also incorporated in the valve for remote operation in the unlikely event of a blockage.

Quality Assurance:

JFC Hydro-Valves are manufactured to ISO 9001:2000 quality assurance system.

Operation:

The JFC Hydro-Valve produces a hydraulic effect to control the flow of stormwater. At low flow rates, water enters through the inlet and passes through the vortex chamber to the outlet without restriction.  As the flow rate increases water enters through the inlet with sufficient energy to create a vortex in the chamber.  This creates a considerable pressure drop between the inlet and outlet restricting the flow to an allowable discharge.  The Hydro-Valve operates automatically with no moving parts or the need for an external power source.

Product Gallery

HYDRO-VALVE SLIDER

The Hydro-Valve Slider is a vortex flow control device which adjusts the flow of Stormwater leaving the storage facility before entering the local storm drain or water course minimising potential flood risk.

It is available in a range of sizes with flow rates varying from 1 – 20 L/s* making it suitable for various specifications. The Hydro-Valve Slider has the added benefit of an innovative and unique sliding vortex chamber feature for ease of inspection and maintenance. Contact JFC for larger flow rates

Design:

The JFC Hydro-Valve Slider is manufactured to customer specifications and custom designed to achieve a specified design flow rate at a given head height.  It fits into one of the following manhole types depending on the specification:

Curved Back Flat Back**
800mm 1500mm
1050mm 1800mm
1200mm 2100mm
2400mm

** Requires a concrete shuttered wall on the inside of the manhole chamber.

Features & Benefits:

  • Typical flow rate: 1-20 L/s*
  • Innovative and unique sliding vortex chamber allows for quick and easy operation from ground level should maintenance be required.
  • Lockable in open and closed positions.
  • Removes the need for a Pen-Stock
  • Design allows for direct unobstructed access to the downstream pipe
  • Typical head heights from 450 to 2500mm*
  • Bespoke design for a given specification. Pre-fabricated models also available.

* Please contact JFC for specific requirements

Quality Assurance:

Manufactured to ISO 9001:2008 quality assurance systems

Operation:

The Hydro-Valve Slider controls Stormwater flow by hydraulic effect. At low flow rates water enters through the inlet and passes through the vortex chamber to the outlet without restriction.  As the flow rate increases water enters through the inlet with sufficient energy to create a vortex in the chamber which results in a considerable pressure drop between the inlet and outlet which restricts the flow to the allowable discharge.  It therefore operates automatically with no moving parts and no external power source.

Inspection and Maintenance:

  • The Hydro-Valve slider is designed to allow direct unobstructed access to the downstream pipe.
  • The unique sliding vortex valve allows for quick and easy operation from ground level should maintenance be required.
  • Small vortex chambers can be completely removed from the manhole for inspection and maintenance.
  • The unit can be locked in both the open and closed position depending on the maintenance requirements.

Product Gallery

HYDRO-VALVE MINI

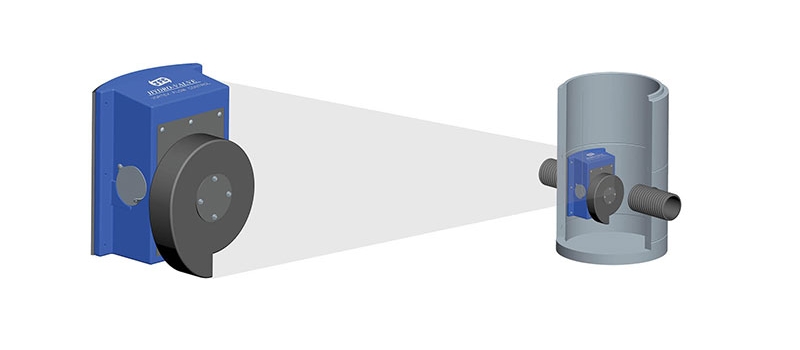

Having identified the need in the market for a more compact design flow control unit JFC are delighted to introduce the Hydro-Valve Mini.

This vortex flow control device controls the flow of stormwater leaving the storage facility before entering the local storm drain or water course minimising potential flood risk.

It is available in a range of sizes with flow rates varying from 1 to 5 L/s* making it suitable for various specifications.

Designed specifically to fit through a 600mm manhole its compact design is extremely easy to install or retrofit onto the manhole. It can also easily removed without the need of specialist tooling for cleaning or maintenance purposes.

JFC Hydro-Valve Mini fits into one of the following manhole types depending on specification:

Curved Back (mm) Flat Back (mm)**
800 1500
1050 1800
1200 2100

**Requires a concrete shuttered wall on the inside of the manhole cover

Hydro-Valve Mini 1
(Typical flow rate l/s)*
Hydro-Valve Mini 2
(Typical flow rate l/s)*
1-3 1-5
Typical Head Heights
(mm)*
Typical Head Heights
(mm)*
400 – 3000 400 – 3000

*Contact JFC for further information

Features & Benefits:

  • Extremely easy to install or retrofit
  • Fast installation – suitable for curved or flat back manholes
  • Small compact design
  • Stainless steel sliding vortex plate
  • Greater access to downstream pipe
  • Vortex chamber can be removed

Product Gallery

HYDRO-PLATE

The Hydro-Plate is an orifice type flow control device for throttling the flow rate of stormwater before discharge into a local storm drain or water course.

It is used to control the flow from the attenuation tank preventing downstream flooding during periods of heavy rainfall. Manufactured to customer specifications in order to achieve a specified flow rate at a given head height. This self activating device uses an oriface principle to control and attenuate stormwater flow without the need for moving parts or an external power source. They come in a variety of models to suit the application and customer specification.

Hydro-Plate (Fixed With By-Pass)

JFC Hydro-Plate
Curved Back Flat Back
1200mm 1050mm
1350mm 1800mm
1500mm 2100mm
2400mm

Features and Benefits:

  • Typical flow rate: 5-300L/s
  • Typical head heights: 450-3000mm
  • Fast Installation
  • Bypass drain-down
  • Customised specification
  • Hydraulic data available

Hydro-Plate (Fixed Without By-Pass)

JFC Hydro-Plate
Curved Back Flat Back
1200mm 1050mm
1350mm 1800mm
1500mm 2100mm
2400mm

Features and Benefits:

  • Typical flow rate: 5-700L/s
  • Typical head heights: 450-3000mm
  • Fast Installation
  • Customised specification
  • Hydraulic data available

Product Gallery
