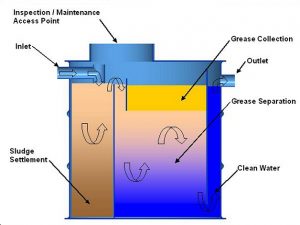

We manufacture a range of underground polypropylene passive grease separators in accordance with EN 1825 to suit large facilities such as Hotels, Restaurants, Canteens, Supermarket Deli’s, Fast Food Premises etc. The separator is typically positioned externally.

 All grease separators are sized in litres / second and nominal sizes are available in 1,2,4,7 and 10. (Larger sizes are available on request). There are two ways in which separators are sized as outlined in EN1825. The first is based on daily throughput of the kitchen with the second based on the number and type of kitchen equipment discharging to the grease separator. The calculations are outlined in the grease separator design and installation manual and are available upon request.

Applications:

  • Hotels
  • Restaurants
  • Fast Food Outlets
  • Supermarket Deli
  • Office Canteen
  • Factory Canteen
  • Food Manufactures
Product Code Description Dimensions (Ø x h) mm Volume (L)
GS1 Grease Separator (1 L/s) 925 x 1125 400
GS2 Grease Separator (2 L/s) 1150 x 1275 750
GS4 Grease Separator (4 L/s) 1450 x 1600 1650
GS7* Grease Separator (7 L/s)* 1850 x2000 3450
GS10* Grease Separator (10 L/s)* 2150 x 2200 5450

* Twin Inspection Points

Features & Benefits:

  • Removes grease (fats/oils) from waste water.
  • Designed and manufacturedto EN1825-1.
  • Manufactured from strong durable polypropylene.
  • Can be installed under trafficked and non-trafficked areas.
  • Design and Installation Manual.
  • Sizing Calculator.
  • AutoCAD Drawings.



Installation Locations:

  • All Underground Installations
  • Under Traffic Areas
  • Under Non Traffic Areas

Installation details for under Trafficked Application:

  1. 30N Concrete
  2. Grease Interceptor
  3. Distribution Sampling Chamber
  4. Grease Separator Riser (600mm)
  5. Distribution Sampling Chamber Riser (450mm)
  6. Grease Separator Access Cover
  7. Distribution Sampling Chamber – Access Cover
  8. Pavement
  9. Reinforcing Mesh

Installation details for under Non Trafficked Application:

  1. Clause 804 Aggregate
  2. Grease Separator
  3. Distribution Sampling Chamber
  4. Grease Separator Riser (600mm)
  5. Sampling Chamber Riser (450mm)
  6. Grease Separator Access Cover
  7. Distribution Sampling Chamber
  8. Concrete Slab
