CorriPipe™ Fittings & Accessories
JFC offer a broad range of CorriPipe™ fittings and accessory products that are a quick and efficient to use and suitable for several applications.
A wider range of pre-fabricated fittings for 375Ø, 450Ø, & 600Ømm pipe are also available on request.
Fitting Types
| Fitting Type | Size |
|---|---|
| CorriPipe™ Bends | 15°, 30°, 45°, and 90° from 150-300mm |
| CorriPipe™ Equal & Unequal Tees | From 150 – 300mm |
| CorriPipe™ Equal & Unequal Wyes | From 150 – 300mm |
| CorriPipe™ Adaptors | To connect 110mm/160mm single wall sewer to 150, 225 & 300mm Twinwall pipe |
| CorriPipe™ Sewer Tees | To T-off 110/160mm single wall sewer to Twinwall pipe |

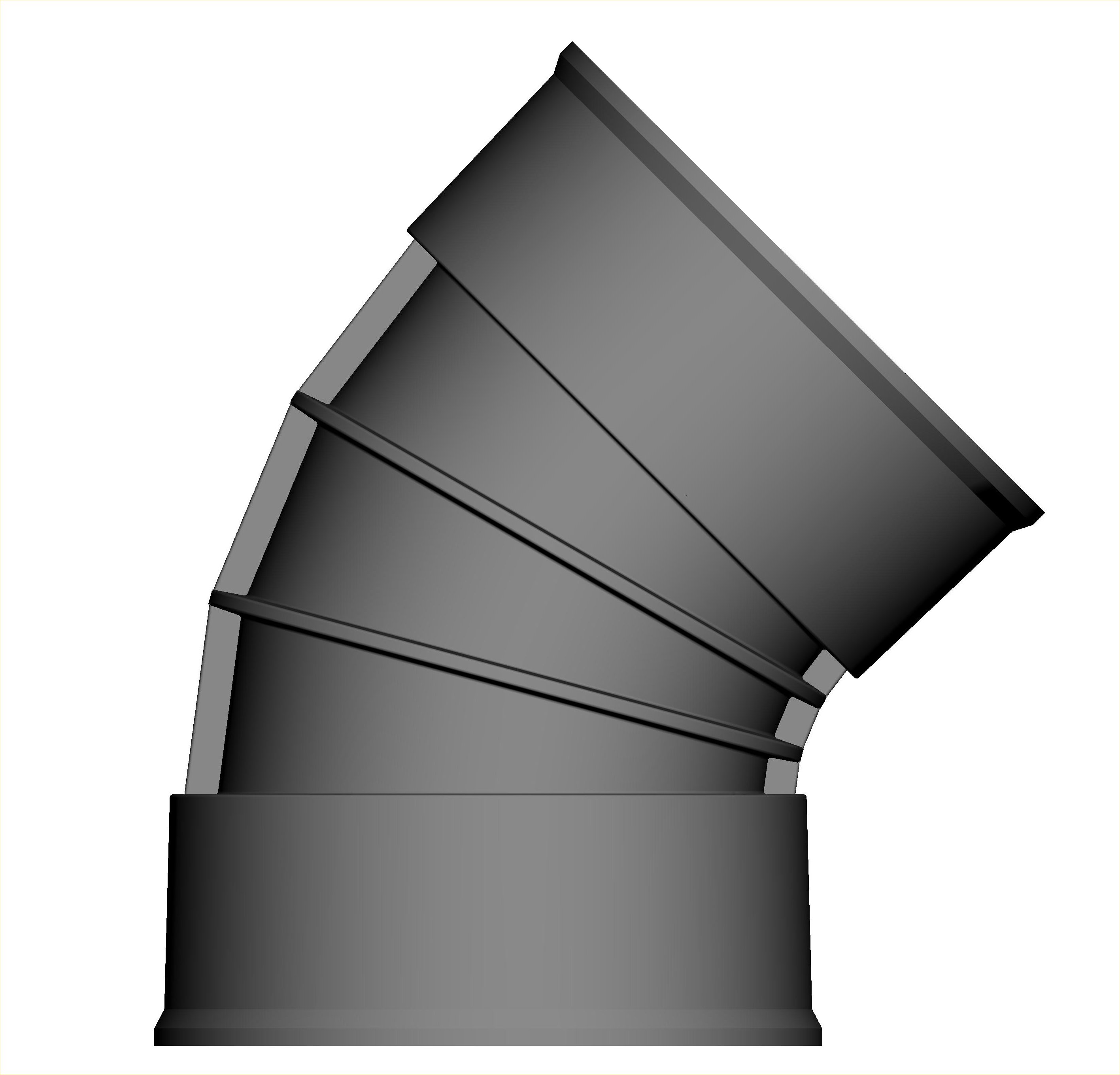

CorriPipe™ Bends
Bends are available in 15°, 30°, 45°, and 90° angles and in varying lengths 150-300mm. Bends are available in 15°, 30°, 45°, and 90° angles and in varying lengths 150-300mm. Larger fabricated sizes available on request.
| Product Code | Description |
|---|---|
| 150TB15 | 150mm CorriPipe™ 15° Bend |
| 150TB30 | 150mm CorriPipe™ 30° Bend |
| 150TB45 | 150mm CorriPipe™ 45° Bend |
| 150TB90 | 150mm CorriPipe™ 90° Bend |
| 225TB15 | 225mm CorriPipe™ 15° Bend |
| 225TB30 | 225mm CorriPipe™ 30° Bend |
| 225TB45 | 225mm CorriPipe™ 45° Bend |
| 225TB90 | 225mm CorriPipe™ 90° Bend |
| 300TB15 | 300mm CorriPipe™ 15° Bend |
| 300TB30 | 300mm CorriPipe™ 30° Bend |
| 300TB45 | 300mm CorriPipe™ 45° Bend |
| 300TB90 | 300mm CorriPipe™ 90° Bend |

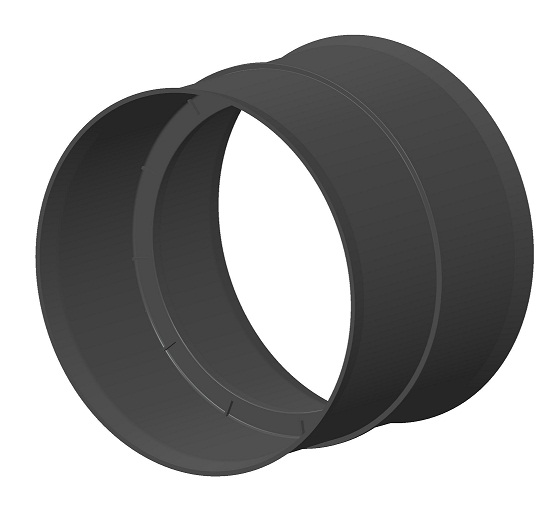

CorriPipe™ Couplers
Couplers join twinwall pipes together and are supplied as standard with JFC CorriPipe™.
| Product Code | Description |
|---|---|
| 110TC | 94/110mm Twinwall Coupler |
| 150TC | 150mm Twinwall Coupler |
| 225TC | 225mm Twinwall Coupler |
| 300TC | 300mm Twinwall Coupler |
| TC375 | 375mm Twinwall Coupler |
| TC450 | 450mm Twinwall Coupler |
| TC600 | 600mm Twinwall Coupler |

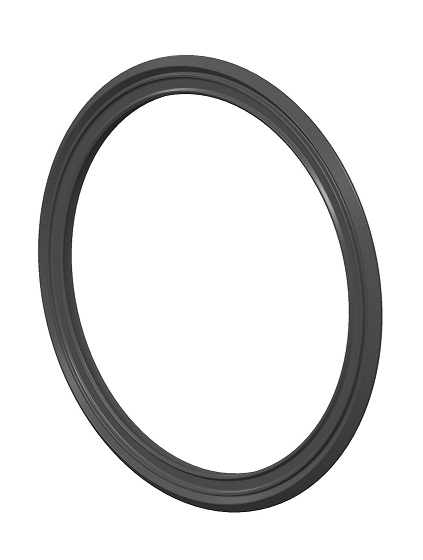

Ring Seals – Plain Ended CorriPipe™
Seals ensure a waterproof and secure connection and are supplied as standard with JFC CorriPipe™.
| Product Code | Description |
|---|---|
| 150TRS | 150mm Ø Ring Seal |
| 225TRS | 225mm Ø Ring Seal |
| 300TRS | 300mm Ø Ring Seal |
| 375TRS | 375mm Ø Ring Seal |
| 450TRS | 450mm Ø Ring Seal |
| 600TRS | 600mm Ø Ring Seal |
Ring Seals – Bell & Spigot CorriPipe™
Seals ensure a waterproof and secure connection and are supplied as standard with JFC Large Diameter CorriPipe™.
| Product Code | Description |
|---|---|
| 750BBS | 750mm Ø Ring Seal |
| 900BBS | 900mm Ø Ring Seal |
| 1050BBS | 1050mm Ø Ring Seal |

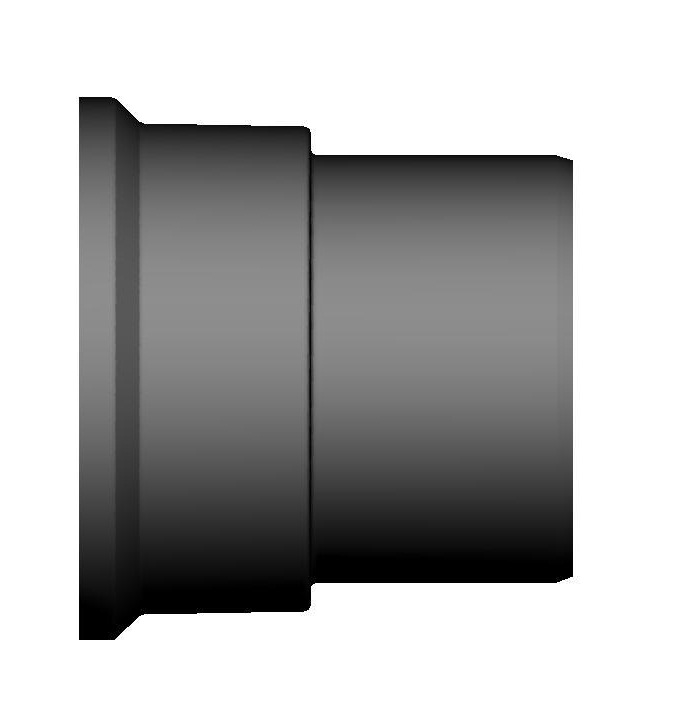

CorriPipe™ Adaptors
Adaptors connect 110mm/160mm single wall sewer to 150, 225 & 300mm twinwall pipe. Larger fabricated sizes available on request
| Product Code | Description |
|---|---|
| TC150/SWS6″ | 150mm CorriPipe™ Adaptor to connect to 150mm single wall sewer pipe |
| TC225/SWS9″ | 225mm CorriPipe™ Adaptor to connect to 225mm single wall sewer pipe |
| TC300/SWS12″ | 300mm CorriPipe™ Adaptor to connect to 300mm single wall sewer pipe |

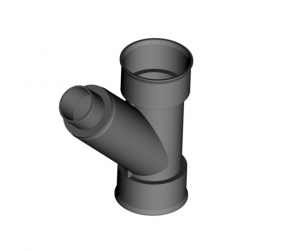

CorriPipe™ Wyes
JFC supply a range of equal and unequal wyes (junctions) which range in size from 150mm to 375mm. They have equal and unequal diameter sockets in a range of sizes. Larger fabricated sizes available on request.
| Product Code | Description |
|---|---|
| 150TY45 | 150mm CorriPipe™ Equal 45° Wye |
| 225TY45 | 225mm CorriPipe™ Equal 45° Wye |
| 300TY45 | 300mm CorriPipe™ Equal 45° Wye |
| 225/150TY45 | 225/150mm CorriPipe ™ Unequal 45° Wye |
| 300/225TY45 | 300/225mm CorriPipe ™ Unequal 45° Wye |
CorriPipe™ Tees
JFC supply a range of tees (junctions). They range in size from 150mm to 375mm. They have equal and unequal diameter sockets in a range of sizes. Larger fabricated sizes available on request.
| Product Code | Description |
|---|---|
| 150TT90 | 150mm CorriPipe™ Equal 90° Tee |
| 225TT90 | 225mm CorriPipe™ Equal 90° Tee |
| 300TT90 | 300mm CorriPipe™ Equal 90° Tee |
| 225/150TT90 | 225/150mm CorriPipe™ Unequal 90 °Tee |
| 300/150TT90 | 300/150mm CorriPipe™ Unequal 90 °Tee |
| 300/225TT90 | 300/225mm CorriPipe™ Unequal 90 °Tee |

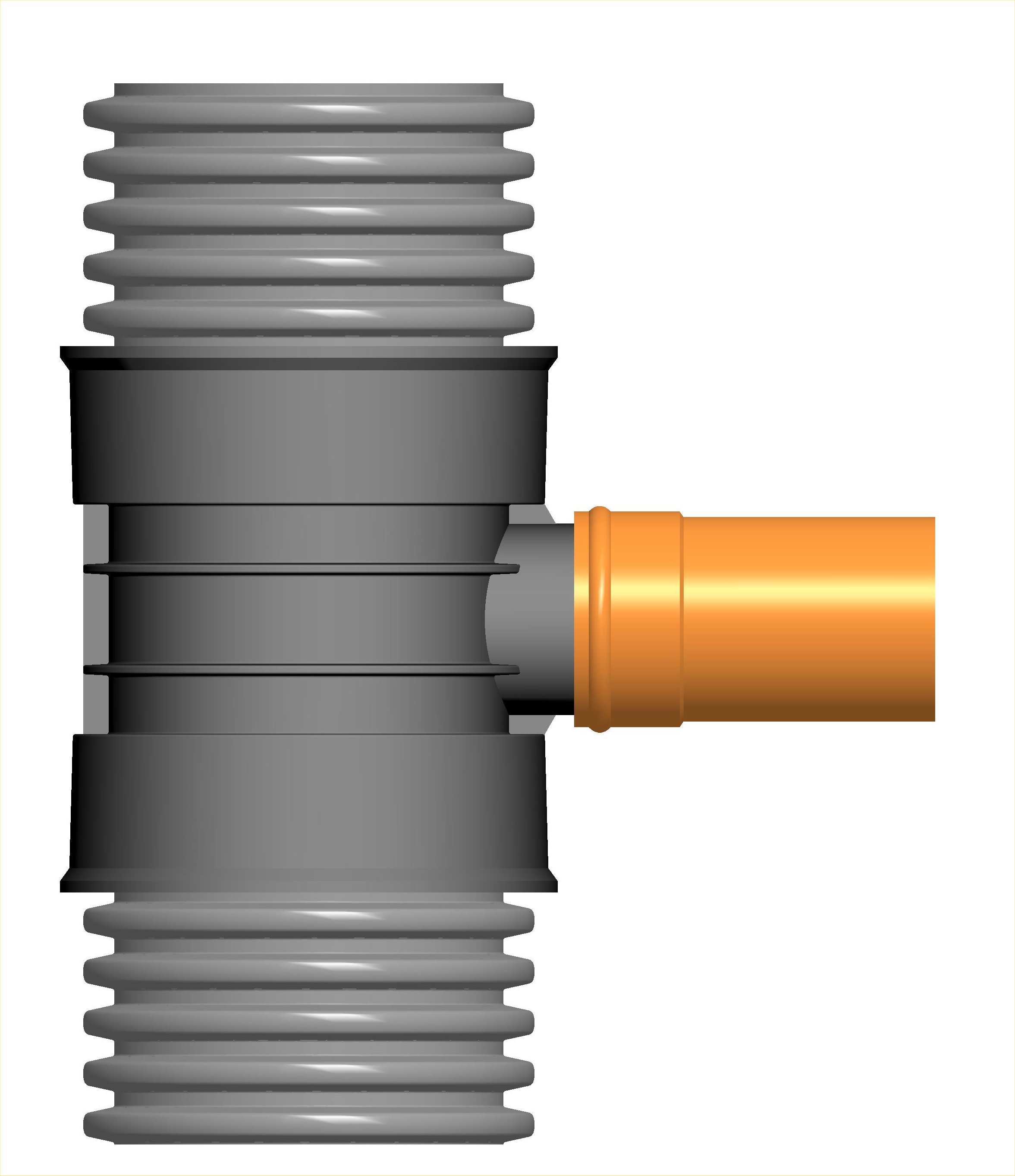

CorriPipe™ Sewer Tees
Sewer Tees are used to T-off 110/160mm single wall sewer to Twinwall pipe.
| Product Code | Description |
|---|---|
| 150/SWS6″TT90 | 150mm CorriPipe™ 90° Sewer Tee to connect to 110/160mm Single wall sewer |
| 225/SWS6″TT90 | 225mm CorriPipe™ 90° Sewer Tee to connect to 110/160mm Single wall sewer |
| 300/SWS6″TT90 | 300mm CorriPipe™ 90° Sewer Tee to connect to 110/160mm Single wall sewer |
